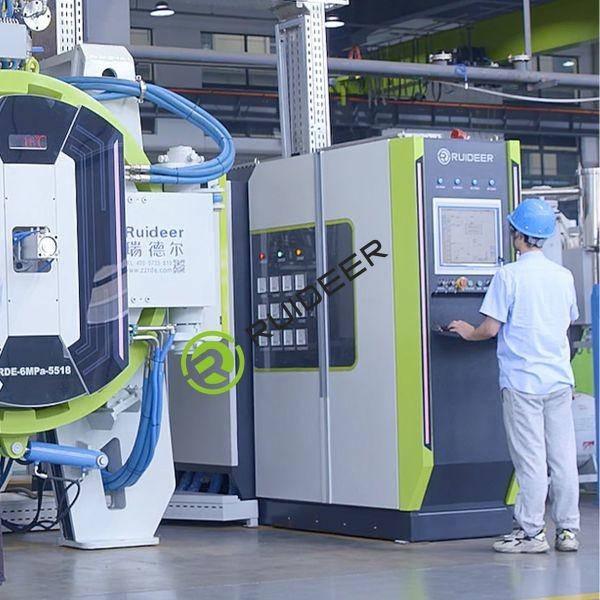

    Multifunctional Pressure Rapid Cooling Sintering Furnace 280kva Vacuum 6mpa Negative Positive Pressure Dewaxing

    Ask Lasest Price
    Brand Name : Ruideer
    Model Number : 336/4412/5518
    Certification : CE
    Price : USD1200000.00-20000000.00
    Supply Ability : 5-6 months/set
    Delivery Time : 4-5monthes
    • Product Details
    • Company Profile

    Multifunctional Pressure Rapid Cooling Sintering Furnace 280kva Vacuum 6mpa Negative Positive Pressure Dewaxing

    280kva vacuum 6mpa negative positive pressure dewaxing multifunctional pressure rapid cooling sintering furnace

    Product Description:

    Vacuum Sintering Furnace is a high-performance sintering oven which utilizes resistance heating for sintering a wide variety of materials. It features a graphite and molybdenum heating element, and a stainless steel furnace shell to ensure maximum durability and safety. This vacuum sintering oven can reach a vacuum degree of ≤1Pa, and is powered by AC380V/50Hz. With its superior performance and quality, the Vacuum Sintering Furnace is the perfect choice for any sintering application.


    Features:

    • Product Name: Vacuum Sintering Furnace
    • Furnace Shell: Stainless Steel
    • Temperature Control System: PID Automatic Control
    • Max Temperature: 2200℃
    • Power Supply: AC380V/50Hz
    • Temperature Control: ±5℃

    Technical Parameters:

    Product NameTechnical Parameter
    Vacuum Sintering FurnaceVacuum Degree: ≤1Pa
    Power Supply: AC380V/50Hz
    Cooling System: Air Cooling & Water Cooling
    Heating Mode: Resistance Heating
    Insulation Layer: High-temperature Resistant Carbon Composite
    Vacuum Pump: Mechanical Pump
    Temperature Control System: PID Automatic Control
    Furnace Shell: Stainless Steel
    Temperature Control Accuracy: ±1℃

    Applications:

    Ruideer Vacuum Sintering Furnace is a kind of furnace for sintering materials under vacuum condition. It has several models, such as RDE-336, RDE-4412, and RDE-5518, which are manufactured in China. The vacuum is achieved by means of a mechanical pump, and the temperature is monitored and controlled by a K-type thermocouple. The insulation layer is made of high-temperature resistant carbon composite, and the cooling system can be either air cooling or water cooling. The power supply required is AC380V/50Hz.

    This Vacuum Sintering Furnace is widely used in many different applications, such as sintering of ceramic and metal materials, vacuum heat sintering and sintering of powder metallurgy components. It is also used in the sintering of complex components with high dimensional accuracy and surface quality, such as in the manufacture of micro-electro-mechanical systems and optical components. It is a reliable and efficient furnace for manufacturers of vacuum heat sintering, sintering vacuum oven, sintering vacuum oven, and vacuum sintering furnace.


    Product features:
    1. Uniform heating, stable temperature field, accurate temperature measurement and control

    2. Tungsten rhenium thermocouple is used for temperature measurement at low temperature (0-1200 ℃); High temperature (1200-2200 ℃) Fluke dual-color infrared thermometer
    3. The heating element is designed for rapid disassembly and assembly of graphite parts.

    4.The heating element, fixing parts and insulation layer can be used for more than 200 times.
    5. Adopt slide valve pump and roots pump unit, including air filtration system
