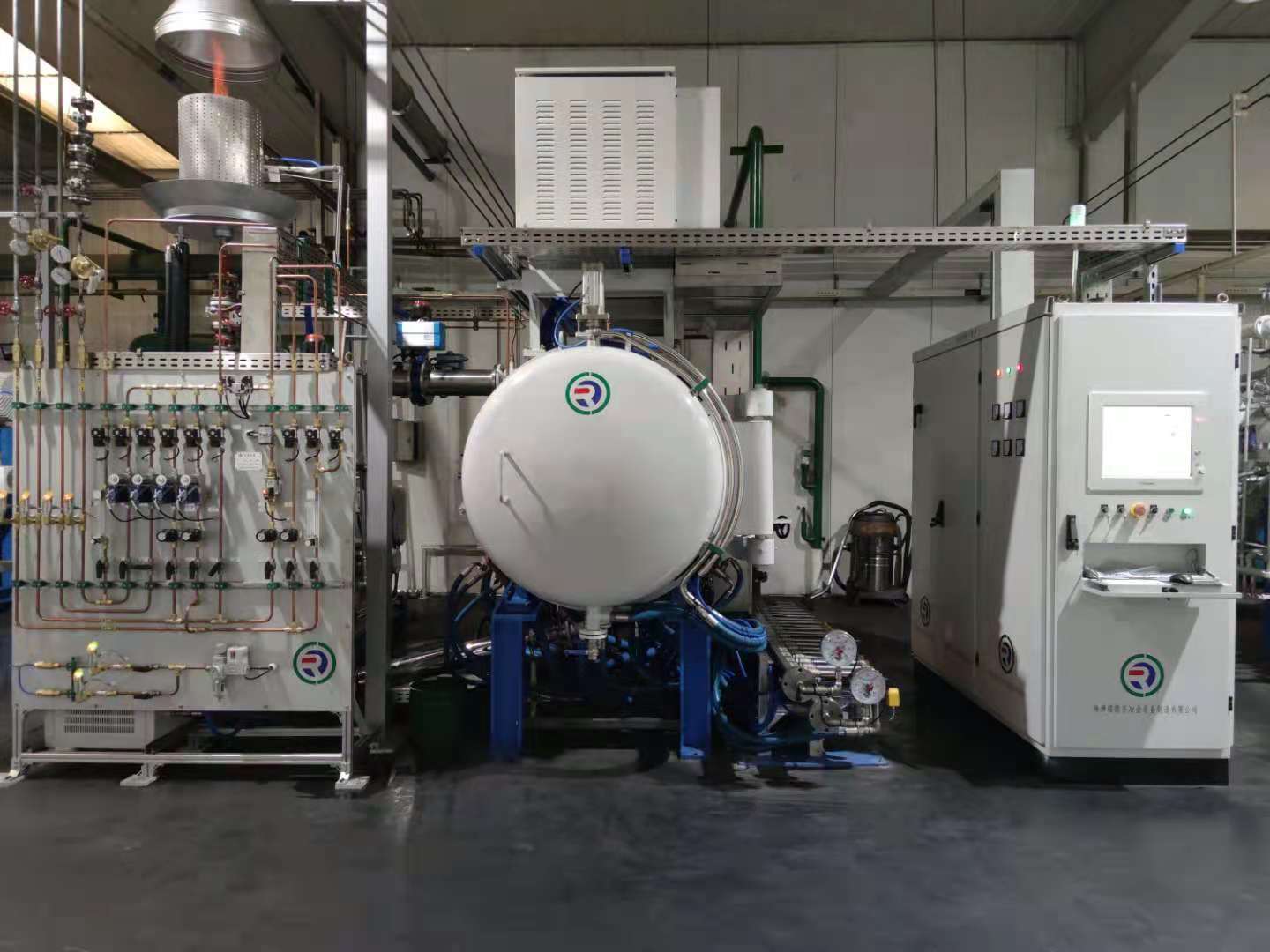

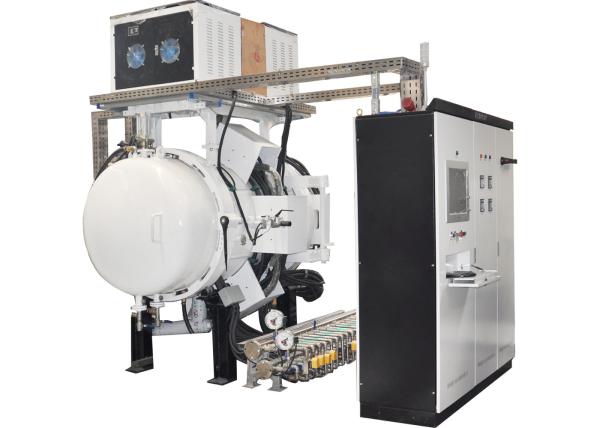

400*400*1500 Metal vacuum sintering furnace single-chamber,
horizontal and periodic heating structure
Equipment brief introduction
The metal sintering furnace is single-chamber, horizontal and
periodic heating structure.It adopt high temperature
molybdenum-Lanthanum alloy heating element.In addition, there are
multiple heating units, each of which controls the temperature
separately. The equipment is used for vacuum and high temperature
degassing sintering of high density alloys, tungsten-nickel alloys,
tungsten-copper alloys, titanium alloys, magnetic materials, etc.It
can also be applied to vacuum heat treatment process of other rare
metal materials. The whole process is controlled by automatic and
manual dual-mode control, monitoring, tracking, self-diagnosis
simulation, display and recording.
Design standard: two-door horizontal structure, horizontal
structure design for easy loading, unloading and maintenance, the
whole process of automatic and manual dual-mode control.
The furnace structure design advanced and reasonable, easy to use
operation and maintenance. The main ancillary components has
today's international advanced level, which include control
element, sensor, high temperature molybdenum-Lanthanum alloy
heating element, stainless steel insulation layer, thermocouple,
main control valve, vacuum pump and so on. It can adapt to
long-term, stable, reliable mass production requirements.
Meanwhile,the equipment meets the national requirements of energy
conservation and environmental protection.
Application
Used for vacuum annealing treatment of carbon sensitive alloy such
as high specific gravity alloy, tungsten nickel alloy, tungsten
copper alloy, titanium alloy, magnetic material, etc.
Technical parameters of equipment
Effective working zone size(W*H*L) | 400mm×400mm×1500mm |
Max.loading capacity | 500kg(it depends on the type of product) |
Working temperature | 1600℃(The maximum design temperature) |
1420℃(filling hydrogen working temperature) |
| 1550℃(The actual working temperature) |
Pumping speed
| The vacuum degree can reach 5Pa within 30min after the pump is
started, and the limit vacuum value can reach 1Pa after pumping for
30min after reaching 5Pa (After drying the furnace,under the empty furnace, clean and cold
state) |
Leakage rate | ≤3Pa/h (Measuring the limit vacuum after drying the furnace, stop the
operation of the pump group and start the test.Average within 3
hours in empty furnace, clean and cold state) |
Cooling speed | The furnace is empty.From 1450℃ cooling to 100℃ will cost less than
and equal to 3 hours.(Water temperature≤28℃,2bar≤Water
pressure≤3bar) |
Cooling mode | The inner furnace is equipped with rapid cooling fan and water
cooling will cooling with the furnace. |
Heating element material | Graphite |
Heating zone quantity | 2 zone or 3 zone control temperature independently |
Temperature control mode | PID adjustment |
Heating power | About 220KVA |
Wax collection rate
| ≥98%(10kg paraffin refined wax ,Ar negative pressure debinding
,three averages at most |
Uninterrupted power supply guarantee time
| It can power the indicator lights and control the furnace when the
power goes out,the time is more than or equal 80 minutes. |
After sales:
1. Installation, Commissioning and Acceptance
We do installation, commissioning and acceptance in buyer's
plant.During the installation and commissioning period, the
commissioning personnel shall be provided free of charge by the
demander according to the staff standard.
The equipment shipped to the buyer, the seller received the buyer's
notification, both within a week to carry the equipment out of the
box together, then check the equipment and all components according
to the packing list . Including equipment accessories, spare parts
and special tools, attached manual and technical documents, etc. It
can be installed after the acceptance check of equipment.
After installation and debugging, the equipment shall be accepted
according to the technical accessories.
2. Training
When taking-over the Furnace to the customer, We will give a staff
training to customer. The operating personnel of the customer
should join to commission,test the furnace, when installing at
customer’s company.
This is practical operation training and practical maintenance
training,and our technical personnel will telling the basic
principle,equipment maintenance knowledge,And the common fault
handling measures.We can training 2 ~ 3 workers. ( Training how to
maintenance and operating.)
3. Warranty period
The warranty period of the equipment is 12 months, which starts
from the date of installation and debugging of the supplier.
Equipment failure happens, after-sales service personnel shall give
solutions within 2 hours, after receiving the buyer's notification
. If it is need to go to the site for treatment , operators
dispatched by seller should arrive at the site within 48 hours
after go aboard. In case of emergency,operators should arrive at
the site within 48 hours after go aboard, and continue to make
repairs until the fault is removed and the equipment returns to
normal.
