Horizontal Molybdenum Metal Annealing Furnace For Vacuum Heat Treatment

Zhuzhou Ruideer Metallurgy Equipment Manufacturing Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Horizontal Molybdenum Metal Annealing Furnace For Vacuum Heat Treatment from wholesalers

    Buy cheap Horizontal Molybdenum Metal Annealing Furnace For Vacuum Heat Treatment from wholesalers
    • Buy cheap Horizontal Molybdenum Metal Annealing Furnace For Vacuum Heat Treatment from wholesalers

    Horizontal Molybdenum Metal Annealing Furnace For Vacuum Heat Treatment

    Ask Lasest Price
    Brand Name : Ruideer
    Model Number : 600*600*1200
    Certification : CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 6 sets/month
    Delivery Time : 100-120 work days
    • Product Details
    • Company Profile

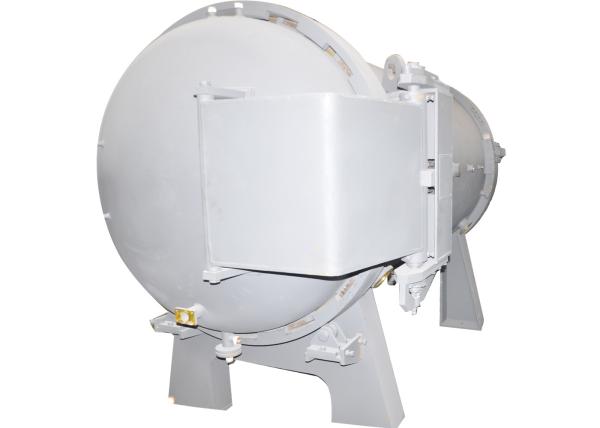

    Horizontal Molybdenum Metal Annealing Furnace For Vacuum Heat Treatment

    Molybdenum-made metal annealing furnace,which can be applied to vacuum heat treatment process of other rare


    Metal annealing furnace:

    The molybdenum-made annealing furnace is single-chamber, horizontal and with internal circulation nitrogen cooling, which adopt low voltage and high current molybdenum heating element for periodic heating.


    The equipment is used for vacuum and high temperature degassing annealing of high-density alloys, tungsten-nickel alloys, tungsten-copper alloys, titanium alloys, magnetic materials, etc.


    Technical Parameters:

    1Design operate time300 furnace/year
    2Effective heating zone size600mm×600mm×1200 mm
    3Max. loading weight1500kg
    4Max. designed temperature1300℃
    5Operating temperature1200℃
    6Vacuum speed rateIn empty furnace, purge, cold condition, 60 minutes after the start of pump package, the vacuum degree reaches 1 x 10-5Torr(1.33×10-3 Pa)
    7Leakage rate≤6.65×10-1pa/h (In empty furnace, purge, cold condition, in average 24 hours)
    8Heating up rate5-10℃/min (Under the full load condition)
    9Cooling gasArgon, Nitrogen (Add three-way manual valve in air source position)
    10Rapid cooling time≤5h
    11Temperature measurementSingle twin-core tungsten-rhenium thermocouple

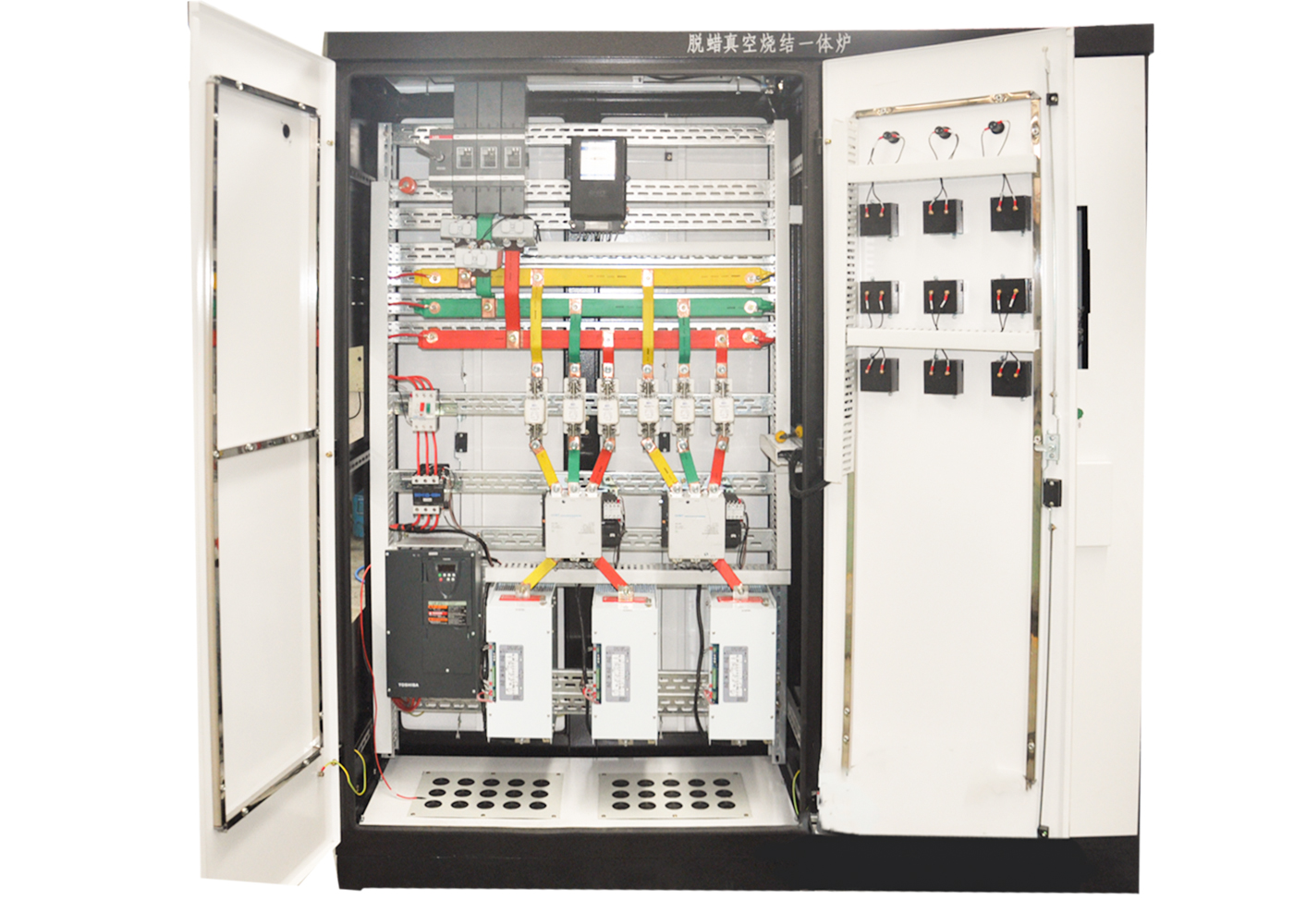

    12Temperature controlAdopt Siemens PLC control
    13High temperature fluctuation≤±5℃
    14Power

    Heating power:about 280KVA

    Total power:about 320KVA

    15Control modeAutomatic and manual dual mode control
    16

    Temperature uniformity


    Temperature deviation≤±5℃

    Temperature uniformity is tested according to AMS2750 standard.


    After sales:

    1.Installation, Commissioning And Acceptance

    We do installation, commissioning and acceptance in buyer's plant.During the installation and commissioning period, the commissioning personnel shall be provided free of charge by the demander according to the staff standard.

    The equipment shipped to the buyer, the seller received the buyer's notification, both within a week to carry the equipment out of the box together, then check the equipment and all components according to the packing list . Including equipment accessories, spare parts and special tools, attached manual and technical documents, etc. It can be installed after the acceptance check of equipment.
    After installation and debugging, the equipment shall be accepted according to the technical accessories.


    2.Training

    When taking-over the Furnace to the customer, We will give a staff training to customer. The operating personnel of the customer should join to commission,test the furnace, when installing at customer’s company.
    This is practical operation training and practical maintenance training,
    and our technical personnel will telling the basic principle,equipment maintenance knowledge,And the common fault handling measures.We can training 2 ~ 3 workers. ( Training how to maintenance and operating.)


    3. Warranty period

    The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions within 2 hours, after receiving the buyer's notification . If it is need to go to the site for treatment , operators dispatched by seller should arrive at the site within 48 hours after go aboard. In case of emergency,operators should arrive at the site within 48 hours after go aboard, and continue to make repairs until the fault is removed and the equipment returns to normal.
