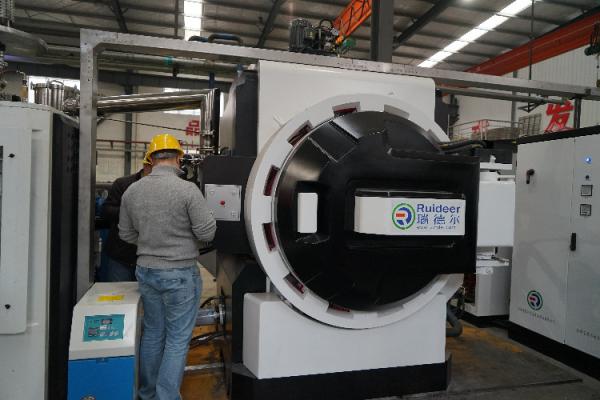

    Multifunctional Automatic Gas Pressure Sintering Furnace Resistive Heating

    Ask Lasest Price
    Brand Name : Ruideer
    Certification : CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
    Price : 250000.00——800000.00(USD)
    Payment Terms : L/C, T/T
    Supply Ability : 8 sets/month
    Delivery Time : 60-80 work days
    • Product Details
    • Company Profile

    Multifunctional Automatic Gas Pressure Sintering Furnace Resistive Heating

    Multifunctional automatic Vacuum degreasing pressure sintering integrated furnace


    Gas Pressure Sintering Furnace Main configuration:


    ◆ Furnace shell: with certificate issued by relevant departments and authorities◆ Furnace door: hydraulic system automatically drives hoop lock

    ◆ Gas path control: volume / mass flow meter; manual valve / automatic valve; imported / domestic

    ◆ Vacuum pump and vacuum gauge: imported / domestic

    ◆ Material truck: fully automatic loading and unloading trolley

    ◆ Operation panel: industrial computer / support touch and mouse operation

    ◆ PLC: Siemens

    ◆ Thermocouple: Wre5-26 (tungsten sleeve / molybdenum sleeve / ceramic sleeve)

    ◆ Electrical components: Schneider / Siemens


    Gas pressure sintering furnacePower supply:General standard is three phase five wire system AC380V±10% 50HZ.Control power supply:Single-phase AC210V-250V 50HZ design(Different countries and regions can be designed according to local grid standards).


    Gas pressure sintering furnaceTemperature and atmosphere uniformity:The magnetic force of the furnace control block is different from that of the cobalt magnetic deviation.Conventional sintering furnace test furnace control block brand isYG6 medium particles, YC40.Debinding pressure sintering integrated.


    Technical parameters:


    SpecificationsRDE-DYL-224RDE-DYL-336/RDE-DYL-339RDE-DYL-3535120/RDE-DYL-4412RDE-DYL-5512/RDE-DYL-5518RDE-DYL-5527
    Effective space(w* h * l)mm200*200*400

    300*300*600/

    300*300*900

    350*350*1200/

    400*400*1200

    500*500*1200/

    500*500*1800

    500*500*2700
    Max.Temperature1600℃1600℃1600℃1600℃1600℃
    Maximum load50Kg150Kg/200Kg300Kg/350Kg1200Kg/1500Kg2000Kg
    Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours)1Pa/h2Pa/h2Pa/h3Pa/h3Pa/h
    Extreme vacuum0.8Pa0.8Pa0.8Pa1Pa1.5Pa
    Wax-collection rate(negative pressure dewaxing process.The maximum average value is 3 furnaces)98%98%98%98%98%
    Working pressure

    1MPa/2MPa/

    6MPa/10MPa

    1MPa/2MPa/

    6MPa/10MPa

    1MPa/2MPa/

    6MPa/10MPa

    1MPa/2MPa/

    6MPa/10MPa

    1MPa/2MPa/

    6MPa/10MPa

    Cooling period(Sintering temperature—100℃)40min-120min40min-150min120min-360min180min-420min180min-480min
    Temperature control modeSingle zone/2-zone2-zone/3-zone2-zone/3-zone3-zone/4-zone4-zone
    Atmosphere and temperatureuniformity

    Com≤±0.15%

    Hc≤±0.25KA/M

    Com≤±0.15%

    Hc≤±0.25KA/M

    Com≤±0.2%

    Hc≤±0.3KA/M

    Com≤±0.2%

    Hc≤±0.3KA/M

    Com≤±0.2%

    Hc≤±0.3KA/M

    Input gas allowedAr,N2,He,H2,CH4,Co2
    Functions:Vacuun dewaxing,H2 dewaxing,vacuum heating,heating with gas mixture(Co2/CH4/H2),heating flowing gas,heating pressure gas,Rapid cooling.
