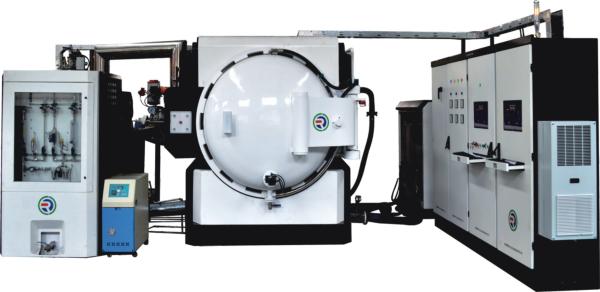

Durable High Temperature Vacuum Furnace With WRe5-26 Thermocouple Measurement Mode

Vacuum High Temperature Sintering Furnace

Vacuum high temperature sintering furnace is made of graphite for the heating element of the vacuum resistance furnace for metal compounds, ceramics, inorganic compounds in a vacuum or protective atmosphere sintering products can also be used for metal materials, heat treatment. Mainly used in capacitors, Tantalum and other metals and refractory metal composition of the alloy material, ceramic materials, silicon carbide and silicon nitride high temperature sintering, but also for metal materials in high vacuum conditions, high temperature heat treatment or precious metal material degassing deal with.

Vacuum pump: backing pump, Roots-type pump(slide valve pump, rotary vane pump, screw pump and so on can be selected for the backing pump, allowing customers to choose world-class brand products)

Power supply: General standard is three phase five wire system AC380V±10% 50HZ.

Control power supply: Single-phase AC210V-250V 50HZ design(Different countries and regions can be designed according to local grid standards)

Temperature measurement mode : WRe5-26 thermocouple

Technical parameters:

Applications: For Non-metal ceramic/Sic carbide

Competitive Advantage:

1. Compact structure, small occupation area, low energy consumption, rapid cooling speed, saving energy and protecting environment.

2. Full range of sizes available, canbe usedin experimental research and development, Small and medium-sized enterprises as well as mass prodution. We can design the procucts according to customer’s special requirement.

3. High automation level:one-button start, Double industrial PC operating system, mutually redundant, safe and reliable.

4. The control system is full-automatic with data record &backup function, the operation system is more humanized,more powerful.

5. The Insulation box is of good insulation effect, free of volatilization athigh temperature, with long life.It adopts “sandwich structure”and CFC material inside and outside with high strength, will be no deformation afteer many years use.

6. Program has resume-heat-at-breakpoint function, no need to restart the program in case of short time power failure.

7. Convenient and intelligent: The control interface of sintering furnace can be monitored by mobile phone, control and understand the running state of the equipment anytime and anywhere. Fully automatic one-key operation function, realize the supervision of multiple devices by one person, intelligent production, and docking ERP management system.

       Zhuzhou Ruideer Intelligent Equipment Co., Ltd. is a manufacturer of powder metallurgy solutions for the whole industry chain. It integrates process development, production, sales and coating services of sintering furnace, PVD coating furnace and CVD coating furnace. Ruideer has standardized workshops and office buildings, covering an area of more than 19,000 square meters, with more than 170 employees. Ruideer’s productivity reaches 120 sets of pressurized sintering furnaces per year, 500,000 pieces of PVD coating per month, and 250,000 pieces of CVD coating per month.

In the past years, Ruideer has been rated as a national high-tech enterprise, a national-level Specialized and Sophisticated enterprise (appointed as a national key little giant enterprise in 2022), a little giant enterprise in Hunan Province, and a single champion of pressure sintering furnace in Hunan Province, and gained 85 intellectual property authorizations.

Nearly 400 sets of degreasing gas pressure sintering furnaces and 180 sets of degreasing vacuum pressure sintering furnaces have been produced. In order to continuously meet and exceed customer needs, Ruideer provides customers with "targeted application, key development, and tailor-made" characteristic services. The products are sold both at home and abroad (US, Russia, EU, Japan, Ukraine, South Korea, Vietnam and other countries), providing 24-hour response services to domestic customers. Ruideer's products have been widely used in the cemented carbide, ceramic, MIM stainless steel, semiconductor industry.

In line with the enterprise spirit of "quality-oriented, continuous innovation, service satisfaction, unity and hard work, and common development", Ruideer is guided by market demand and business development, supported by key technologies, closely following customer needs, and is committed to serving customers with stable and reliable technical products and contribute to the application in the field of powder metallurgy!

Our standard sintering furnace model include (but are not limited to):

• Gas pressure sinteing integrated furnace（1MPa/2MPa/6MPa/10MPa)
• Debinding vacuum sintering integrated furnace
• MIM stainless steel sintering furnace
• Silicon nitride sintering furnace
• Silicon carbide sintering furnace
• Metal sintering furnace (Mo/W heater)
• Vacuum brazing furnace
• CVD coating furnace
