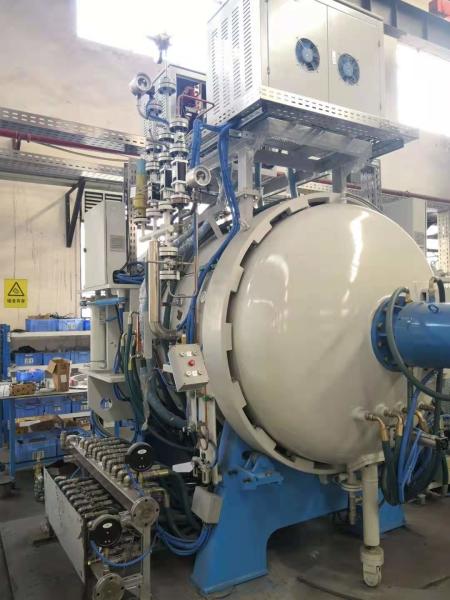

Extreme Vacuum 1.5Pa Heat Treating Furnaces And Equipment Cooling
Period 480min
Description:
Vacuum heat treatment
furnace is a fast developing heat treatment technology in recent years. It
has many advantages, such as good quality, good energy saving
effect and no pollution. It has been widely used in industrial
production process.
Vacuum heat treatment technology is the combination of vacuum
technology and heat treatment technology, which can effectively
improve the quality of metal materials and promote the continuous
improvement of industrial production technology in China. When
metal is heated in an air furnace, it reacts with oxides such as
oxygen, water vapor and carbon dioxide in the air. The substances
generated will seriously affect the quality of metal materials,
resulting in the reduction of the quality of metal materials.
Vacuum heat treatment furnace can solve this problem very well. In
the process of metal heating, the metal is in a completely vacuum
environment, and the heat treatment process is completed under
different external environment contacts, thus effectively avoiding
impurities and improving the quality of metal materials.
Vacuum pump: backing pump, Roots-type pump(slide valve pump, rotary vane pump,
screw pump and so on can be selected for the backing pump, allowing
customers to choose world-class brand products)
Power supply: General standard is three phase five wire system AC380V±10% 50HZ.
Control power supply: Single-phase AC210V-250V 50HZ
design(Different countries and regions can be designed according to
local grid standards)
Temperature measurement mode : WRe5-26 thermocouple
Technical parameters:
Specifications | RDE-GWL-5518 |
Effective space(w* h * l)mm | 500*500*1800 |
Max.Temperature | 1350℃ |
| Maximum load | 1800Kg |
Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours) | 3Pa/h |
| Extreme vacuum | 1.5Pa |
MAX working pressure | 100KPa |
Cooling period(Sintering temperature—100℃) | 480min |
Temperature control mode | 3-zone |
Functions: | vacuum heating,Rapid cooling |
Applications: For Cemented Carbide , Precision Ceramic , For stainless steel ,
Iron-bae alloy , Copper-base alloy , Aluminum products Vacuum heat
treatment
Advantages
1. Compact structure, small occupied area, low energy consumption
and rapid cooling speed, saving energy and protecting environment.
2. Full range of sizes available, ranging from furnaces for
experimental R&D, small and medium-sized enterprises to
furnaces for mass production. We can also design high temperature
sintering furnace s of other sizes according to customer’s specific
requirements.
3. Round or square graphite box is available for different
applications.
4. Complete dewaxing mode with high wax-collection rate, suitable
for different forming agents including rubber, paraffin wax, PEG
and extrusion forming agents.
5. High automation level as well as safe and reliable operating
system.
6. The control system of the molybdenum-made vacuum sintering
furnace is highly-automatic and humanized with data record and
backup function.
7. The insulation box uses “sandwich” structure and high-strength
CFC material that is not prone to deform after years of use.
8. Door of the insulation box is designed with special “step”
design for improved insulation effect and extended service life of
the insulation box.
9. Remote control, diagnosis and repair can be realized.
10. The electrode arc monitoring system can prevent serious damage
to furnace shell caused by overheat and arc effect.
11. The function of resuming heating after short-time power failure
can provide protection to the product in the furnace.
12. Persistent efforts of our R&D team in improving these high
temperature sintering furnaces have enabled Ruideer to obtain 35
patents up till now.
