    Oxalic Acid Debinding MIM Sintering Furnace For SUS Material Heat Treatment

    Ask Lasest Price
    Brand Name : Ruideer
    Model Number : 1500*400*400mm
    Certification : CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 7 sets/month
    Delivery Time : 100-120 work days
    • Product Details
    • Company Profile

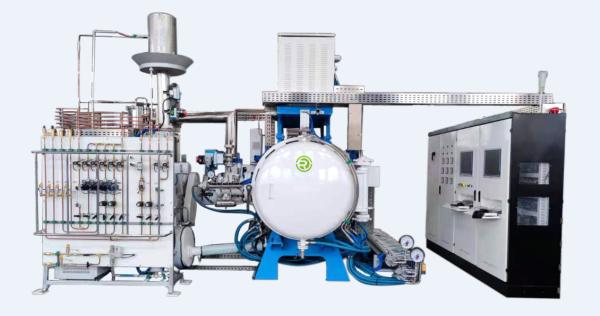

    Oxalic Acid Debinding MIM Sintering Furnace For SUS Material Heat Treatment

    MIM Sintering Furnace For SUS Material Heat Treatment With Oxalic Acid Debinding


    General equipment requirements:

    Main application in MIM injection molding stainless steel materials, hard composite materials, ceramic materials, wear-resistant materials, degreasing, vacuum sintering, partial pressure sintering (static, dynamic), vacuum cooling, rapid cooling and other processes.


    Furnace TypeRDE-446-0MRDE-448-0MRDE-4412-0MRDE-4415-0M
    Usable Space (W*H*L)400*400*600mm400*400*800mm400*400*1200mm400*400*1500mm
    Max.Charge Load50kg150kg300kg500kg
    Power Rating200KVA260KVA300KVA320KVA
    Cooling time≤3h≤3h≤6h≤6h

    Empty furnace, cooling from sintering temperature 1450℃ to 100℃.

    (water temperature≤26℃, water pressure 2-3bar)

    Max. Working Temp1580℃
    Heating Zone2 Zones
    Temperature MeasurementW-Re5/26 Thermocouple
    Max Vacuum Degree1Pa (under cold, empty, dry furnace)
    Leakage Rate3Pa/h (Average value under cold, empty, dry furnace)
    Wax Collection≥98%(Argon gas negative dewaxing, 3-time average value)
    Input gasN2, Ar, H2
    Functions

    Automatic Positive Pressure, Negative Pressure Leak Detection

    Ar Negative Pressure Dewaxing/H2 Micro Positive Pressure Dewaxing

    Vacuum Sintering

    Partial Pressure Sintering (Static, Dynamic)

    Rapid Cooling

    Fully-automatic control & Safety interlock& Breakpoint continuing heating & Wireless remote control& Self-diagnosis


    After sales:

    1.Installation, Commissioning and Acceptance

    We do installation, commissioning and acceptance in buyer's plant.

    The equipment shipped to the buyer, both buyer and seller shall check the equipment and all components according to the packing list, including equipment accessories, spare parts and special tools, attached manual and technical documents, etc. It can be installed after the acceptance check of equipment.


    After installation and debugging, the equipment shall be accepted according to the technical contract.


    2.Training

    When taking-over the furnace to the customer, we will give a staff training to customer. The operating personnel of the customer should join to commission, test the furnace, when installing at customer’s company.

    3. Warranty period

    The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions within 2 hours, after receiving the buyer's notification . If it is need to go to the site for treatment , operators dispatched by seller should arrive at the site within 48 hours after go aboard. In case of emergency,operators should arrive at the site within 48 hours after go aboard, and continue to make repairs until the fault is removed and the equipment returns to normal.
