    Cloud Control Vacuum Sintering Furnace Offers Sample Testing Service

    Ask Lasest Price
    Brand Name : Ruideer
    Model Number : Customizable
    Certification : CE; ISO9001; ISO14001; OHSAS 18001
    Price : 100000.00-350000.00(USD)
    Payment Terms : L/C, T/T
    Supply Ability : 8 sets/month
    Delivery Time : 5-6 months
    • Product Details
    • Company Profile

    Cloud Control Vacuum Sintering Furnace Offers Sample Testing Service

    Cloud Control Vacuum Sintering Furnace Offers Sample Testing Service


    Temperature and atmosphere uniformity: Positive and negative pressure paraffin removal or PEG integration sintering uniformity: furnace control piece (Brand YC40 or YG6 medium granular), evenly distributed.


    The buyer shall provide the furnace control piece and the procedure, and the seller shall confirm it.

    Cobalt magnetism: testing cobalt magnetism after finished dewaxing

    Deviation range:≤±0.2%

    Coercive force:

    Deviation range:≤±0.3KA/M

    The temperature uniformity in the furnace is mainly based on the test performance of the furnace control piece.


    Power supply:General standard is three phase five wire system AC380V±10% 50HZ.Control power supply:Single-phase AC210V-250V 50HZ design(It can be designed according to local grid standards for different countries and regions)


    Temperature measurement mode :WRe5-26 thermocouple

    Cloud Control Vacuum Sintering Furnace Offers Sample Testing Service


    Vacuum Sintering Furnace Technical parameters:


    SpecificationsRDE-YTL-336/RDE-DYL-339RDE-YTL-450RDE-DYL-5518
    Effective space

    300*300*600/

    300*300*900mm

    450*450*1200

    500*500*1800mm
    Max.Temperature1600℃1600℃1600℃
    Maximum load150Kg/200Kg350Kg/400Kg1500Kg
    Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours)2Pa/h2Pa/h3Pa/h
    Extreme vacuum0.8Pa0.8Pa1Pa
    Wax-collection rate(negative pressure dewaxing process.The maximum average value is 3 furnaces)98%98%98%
    Cooling period(Sintering temperature—100℃)240min-300min300min-420min480min
    Temperature control mode2-zone/3-zone2-zone/3-zone3-zone
    Atmosphere and temperatureuniformity

    Com≤±0.25%

    Hc≤±0.35KA/M

    Com≤±0.3%

    Hc≤±0.4KA/M

    Com≤±0.3%

    Hc≤±0.4KA/M


    Input gas allowedAr,N2,H2
    Functions:Vacuun dewaxing,H2 dewaxing,vacuum heating,heating with gas mixture,heating flowing gas,Rapid cooling.

    Vacuum Sintering Furnace Applications


    For Cemented Carbide, Precision Ceramics, stainless steel, Iron-based alloy, Copper-based alloy, Aluminum products

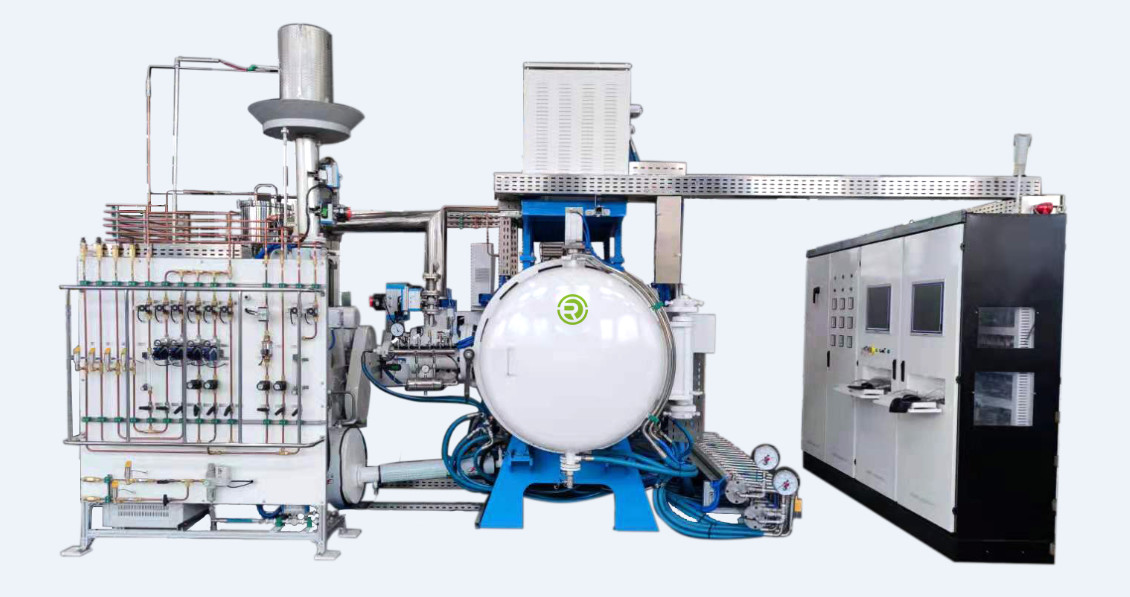

    The cemented carbide pressure sintering furnace is a single chamber and double door horizontal and periodic heating structure,which is designed for easy handling and maintenance, the whole process is controlled automatically.It can realize full load continuous operation, 300 furnace times/year or 300 working days/year.It uses graphite element resistance heating (low voltage, high current) .In addition, there are multiple heating units, each of which controls the temperature separately.It equipped with fully automatic control function and safety interlock function.The whole process is automatically controlled, monitored, tracked and recorded by computer.The PLC, industrial computer (IPC) control to realize the whole process of one-key start, real-time dynamic monitoring, computer will save temperature, pressure, vacuum and other parameters ,alarm interlocking is safe and reliable.
