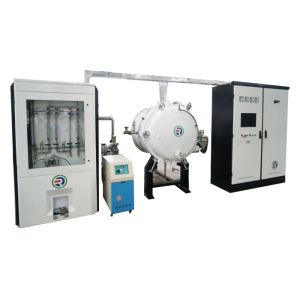

    MIM Vacuum Sintering Furnace For Stainless Steel 404

    Ask Lasest Price
    Brand Name : Ruideer
    Model Number : 400*400*1200/400*400*1500
    Certification : CE;ISO9001; ISO14001; OHSAS 18001; GB/T29490
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 7 sets/month
    Delivery Time : 100-120 work days
    • Product Details
    • Company Profile

    MIM Vacuum Sintering Furnace For Stainless Steel 404

    MIM Vacuum Sintering Furnace For Stainless Steel 404

    Major application: MIM injection molding stainless steel materials, hard composite materials, ceramic materials, wear-resistant materials


    Functions: vacuum sintering, partial pressure sintering (static, dynamic), vacuum cooling, rapid cooling and other processes. (It can meets the strict requirement of uniformity of furnace temperature and atmosphere in sintering process of product.)


    Furnace TypeRDE-448-0MRDE-4412-0MRDE-4415-0M
    Usable Space (W*H*L)400*400*800mm400*400*1200mm400*400*1500mm
    Max.Charge Load150kg300kg500kg
    Power Rating260KVA300KVA320KVA
    Cooling time≤3h≤6h≤6h

    Empty furnace, cooling from sintering temperature 1450℃ to 100℃.

    (water temperature≤26℃, water pressure 2-3bar)

    Max. Working Temp1580℃
    Heating Zone2 Zones
    Temperature MeasurementW-Re5/26 Thermocouple
    Max Vacuum Degree1Pa (under cold, empty, dry furnace)
    Leakage Rate3Pa/h (Average value under cold, empty, dry furnace)
    Functions

    Automatic Positive Pressure, Negative Pressure Leak Detection

    Vacuum Sintering

    Partial Pressure Sintering (Static, Dynamic)

    Rapid Cooling

    Fully-automatic control & Safety interlock& Breakpoint continuing heating & Wireless remote control& Self-diagnosis
