300*300*1200-6MPA sinter-HIP furnace especially for
high-performance cemented carbide materials
Main application
For mass production of high-performance cemented carbide materials
which gathered dewaxing (It can realize vacuum dewaxing,H2
dewaxing,binder can be paraffin or PEG),Vacuum sintering,Low
pressure Argon dynamic partial pressure sintering,High pressure
Argon sintering,cooling,heat preservation and heating up under high
temperature high pressure status.
General structure

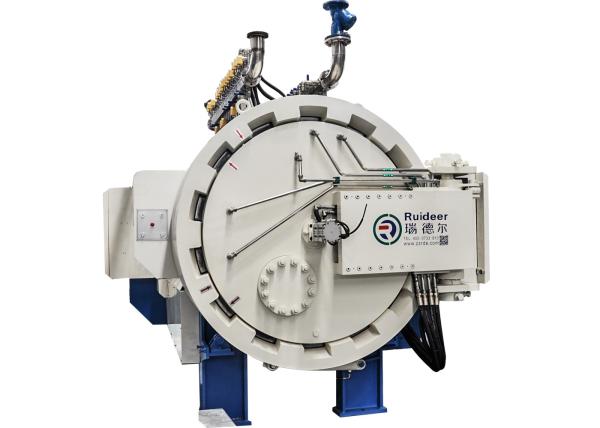

This kind of vacuum pressure sintering furnace for cemented carbide
research, which is single room , horizontal type , recycle heating
furnace,it adopt graphite heating element of low voltage and large
current .All the technical process is automatic
controlled,monitored,chased,fault diagnosed which showed and
recorded by computer.
Design standard:20-year service life,double doors horizontal structure,6000 times.
Technical indexes
| Service life | 6000times / 20-years service life |
| Useful space | 300mm*300mm*1200mm |
| Max. Loading weight | 120kg(According to Sinter products and loading space) |
Max. Designed Temp. | 1600℃(Heating temperature) |
| Max. Working temp. | 1550℃ |
Max. working pressure | 58bar |
| Ultimate vacuum degree | 1pa(After heating,cold,empty,dry condition) |
| Pumping speed | The vacuum degree up to 5 pa within 30min after starting pump,the
vacuum degree can get to 3pa after pumping continually within
30min,(after empty sintering,in empty,clean,cold condition) |
| Leakage rate (In average24h) | 3pa/h(After testing ultimate vacuum,under empty cold,clean
condition,test in average 24h) |
| Wax-collection rate | ≥98% (Argon or Nitrogen dewaxing with 10kg wax absolutely, average
not more than 3 times ) |
| Max. Ramp up rate | 8℃/min(Room temperature ramp up to 1450℃ in vacuum,empty loaded
condition,can be soaked in process when 600℃,1000℃ and 1200℃; ≤5℃/min when Fully loaded. |
| Pressurized time | ≤20min Can be set(When Gas source keep around 130bar,pressurized to
required pressure) |
| Cooling time | ≤3 hours( From 1450℃ drop to 100℃ when fully-loaded,water
temperature≤30℃,90bar≤ pressure≤98bar ) |
| UPS time | Supply power to indicator and to control furnace when power-off,
Keeping time≥60min |
